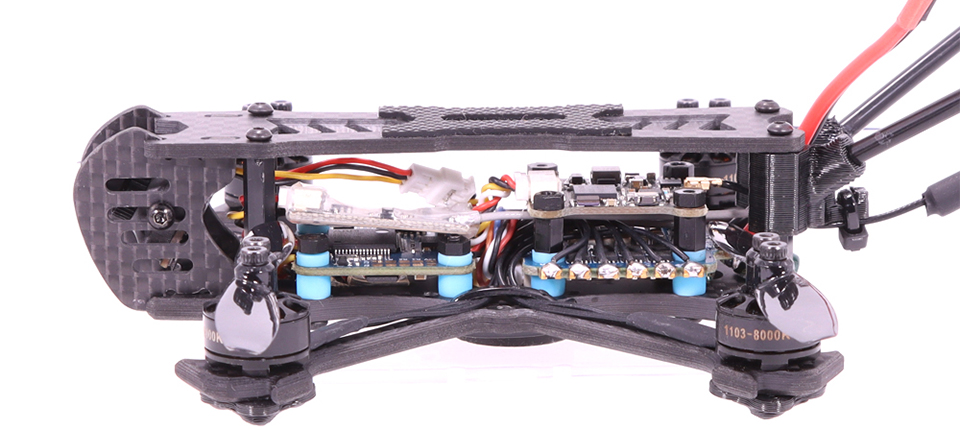

AlfaRC Fi-115 FPV Racing Drone
AlfaRC Fi-115 FPV Racing Drone
Specification:
Brand: AlfaRC
Item Name: Fi-115
Version: PNP ( Without Receiver, Battery, Radio Transmitter) / With Frsky XM+ Receiver / With FLYSKY Fli14+ Receiver.
Material: 3K Carbon Fiber
Wheelbase: 115mm
Plate Thickness: 3mm
Propeller: 2.5 Inch Propeller
Flight Control Installation Holes: 25.5*25.5mm/16*16mm/20*20mm
Support Camera: 14*14mm
Brushless Motor: AlfaRC 1103 8000KV Motor
FC: Micro F405 Flight controller
ESC: Micro 35A Brushless ESC
VTX: 25/100/200/400mW
FPV Camera: Caddx.us Turbo Eos2 1200TVL FPV Camera
Flight Time: 6-8 mins ( Take example as 3S 450mAh Lipo w/2.5 Inch Prop)
Lipo Battery: Recommend 2-3S 300-850mAh Lipo Battery ( NOT Included)
Weight: 78g ( without Battery)
AlfaRC F405 FC
MCU: 168MHz STM32F405
Gyro: MPU6000
Blackbox: 8MB
Betaflight OSD: YES
BEC: 5V 2.5A
Uarts: 5
ESC Telemetry: yes
INA Pad: nuart2
Input Voltage: 2-6S,MAX 8S
Firmware: Betaflight_4.0.5_BETAFLIGHTF4.hex
Size:27*27mm /20*20mm φ3 mounting
Mounting Hole: 20*20mm, φ3mm
Weight: 4g
AlfaRC 35A 4in1 ESC
Dimension: 31*30mm
Mounting Holes: 20*20mm/Φ3mm
Weight: 6.9g
Supports 2-6S Lipo Input
35A Per Channel, 40A Burst
Current Sensor: YES
BEC: NO
Telemetry: NO
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: G-H-30 BLS 16.7
AlfaRC 5806 VTX 5.8G
Input Voltage: 7-26V
Control Protocol: TBS SmarAudio V2.
Onboard BEC Output: 5V
Antenna Connector: IPEX
Number of Transmitting Channels: 40
Transmit Power: 25/100/200 / 400mW
Mounting Hole: 20 * 20
Video Format: PAL / NTSC
AlfaRC 1103 Brushless Motor
Motor KV: 8000KV
Stator Diameter: 14mm
Stator Thickness: 2mm
Shaft Diameter: 1.5mm
No. of Stator Arms: 9S
No. of Rotor Poles: 12P
Mounting Holes Distance: 9*9mm
Mounting holes: φM2
Bearing: NSK
N52 Strong NdFeB Magnet
No. of Cells: 2-3S Lipo
Recommended Propeller: 2 Inch-3 Inch
Weight: 4g
