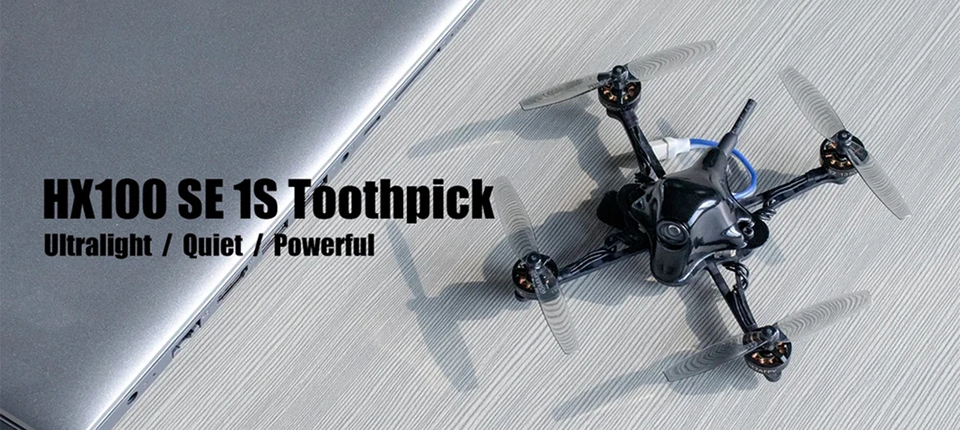

BETAFPV HX100 FPV Racing Drone
BETAFPV HX100 FPV Racing Drone
Specification:
Brand Name: Betafpv
Model: HX100 SE
Item Name: 100mm F4 1S FPV Racing Drone
Weight: 28.09 ( without battery)
Flight Time: 4 mins( in a smooth outdoor flight) ;
2:30 mins( in full throttle outdoor flight)
Betafpv HX100 SE 100mm Frame Kit
Wheelbase: 100mm
Material: T300 Carbon Fiber
Weight: 4.0g/pc
Betafpv F4 1S Brushless Flight Controller V2.2
Brand
CPU: STM32F411CEU6 ( 100MHZ )
Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Size: 29mm x 29mm (Mounting Hole: 26.5×26.5mm)
Firmware version: Frsky / Fubata: Betaflight MATEKF411RX (MK41R) , DSMX: BETAFPVF411
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Power Cable: 55mm, with BT2.0 connector
Weight: 2.69g
Onboard 5A BLHeli_S 4in1 ESC
Con. Current: 5A
Burst Current: 6A ( 3S)
Power Supply: 1S
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_6.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Betafpv 1102 13500KV Motor
KV: 13500KV
Height: 15.2mm
Weight: 2.95g (1 pcs)
Shaft: φ1.5mm
Motor Mount Holes: 6.6m
Input Voltage: 1-2S Lipo
Plug and cables: Micro JST-1.25 3-pin connector with 30AWG cables
Gemfan 65mm 2-Blade Propeller
Brand Name: Gemfan
Material: PC
Inner diameter: 1.5mm Shaft
Weight(2CW+2CCW): 1.6g/set
Color: transparent Gray
Betafpv M01 Camera AIO VTX V2.1
TVL: 600TVL
FOV: H:120°/V:100°
Video System: NTSC
Horizontal Resolution: 640X480 1/4”
Output power: 25mW
Supply Voltage: 5V
Size: 18*14*4.5mm(VTX)
Weight: 2.72g
Antenna: RG178 Antenna
Frequency: 5.8GHz 6 bands 37 channels, with Raceband: 5362~5945MHz
Betafpv BT2.0 300mAh 1S Lipo Battery
Item Name: 1S 300mAh 30C Lipo Battery BT2.0 Plug Connector
Capacity: 300mAh
Rate: 30C/60C
Voltage: 4.35V
Dimension: 67.3*11.8*6.1mm
Connector: Betafpv BT2.0 connector
Weight: 8.28g(1pcs)
